Hollow Type 10kg 100NM Magnetic Powder Brake FZ100K Precise Tension Control
Introduction
Magnetic brake is used to drive machinery, such as loading and brake dynamometer. It is widely used in unwinding and rewinding tension control in papermaking, printing, packaging, plastics, rubber, glass, textile, printing and dyeing, wire and cable, metallurgical and other machine and industrial.
Details for brake
| Type | Hollow type magnetic powder brake |
| Model | FZ100K |
| Torque | 100NM/10.0kg |
| Input | DC24V |
| Current | 2A |
| Type | Powder |
| Warranty | 1 year |
Application
- Labeling machine
- Tape cutting machine
- Paper cutting machine
- Non-Woven winder
- Film machine
- Film cutting machine
- Other machine
Advantages
1) High-precision torque control
2) Superior durability, long life
3) The stability of fixed superior torque characteristics
4) Continuous operation of the use of sliding
5) Ink sleek, non-shock
6) Suitable for high-frequency operation
Parameters
| Model | Torque/N.m | Current/A | Voltage/V | Speed/rpm | Weight/kg |
| FZ6K | 6 | 0.80 | 24 | 1000 | 3.0 |
| FZ12K | 12 | 1.00 | 24 | 1000 | 4.5 |
| FZ25K | 25 | 1.50 | 24 | 1000 | 7.5 |
| FZ50K | 50 | 1.80 | 24 | 1000 | 12.0 |
| FZ100K | 100 | 2.00 | 24 | 800 | 20.5 |
| FZ200K | 200 | 2.80 | 24 | 800 | 30.0 |
| FZ400K | 400 | 3.00 | 24 | 800 | 55.0 |
| Model | D1(mm) | D2(mm) | D3(mm) | L1(mm) | L2(mm) | L3(mm) | 6-S(mm) | d(mm) | t(mm) | Magnetic powder(g) |
| FZ6K | 130 | 62 | 52 | 3 | 57 | 60 | M4 | 16 | 6 | 10 |
| FZ12K | 150 | 82 | 65 | 4 | 68 | 72 | M5 | 20 | 6 | 20 |
| FZ25K | 182 | 110 | 90 | 4 | 80 | 84 | M6 | 25 | 8 | 30 |
| FZ50K | 219 | 130 | 110 | 5 | 90 | 95 | M6 | 30 | 8 | 60 |
| FZ100K | 260 | 140 | 120 | 5 | 105 | 110 | M8 | 35 | 10 | 110 |
| FZ200K | 335 | 170 | 150 | 5 | 115 | 120 | M10 | 45 | 14 | 180 |
| FZ400K | 398 | 200 | 180 | 6 | 135 | 140 | M14 | 60 | 18 | 300 |
Why choose CBB Chuangbo
A. Reliable supplier in China
Established in 1995, CBB Chuangbo has been in machinery parts for 25 years, now we are biggest manufacturer of machinery parts in East China.
B. Hight quality material
High quality of steel shell for the brake and imported powder for longer life of the brake.
C. Cooling treatment
Insider there is a small cooling fan inside the brake, cooling the tempreture and make the brake stable.
D. Quality control
We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.
Shipping
1.We delivery packages within 3~7 working days after payment received.
2.Express via DHL,FedEx,TNT,EMS,UPS,etc. If you need to ship by your way,please contact with us.
3.All our goods are strictly inspected and strong packed before shipping.To avoid package damaged caused by transportation.When you sign for the package, be sure to check to see if it is damaged or not. If damaged, please take pictures and contact us at the first time.
About CBB Ruian Chuangbo
Ruian Chuangbo Machinery Co., Ltd. established in 1995, is specialized in manufacturing of machinery parts. The company has advanced production level and scientific research equipment, the products are matched with printing, packaging, plastics, paper, textile, pharmaceutical machinery and other industries. The company has been granted with independent import and export rights, the products sold to allover the country and export to more than thirty countries and regions, such as: India, Pakistan, Israel, Russia, Spain and so on
Product Tags:
|
|

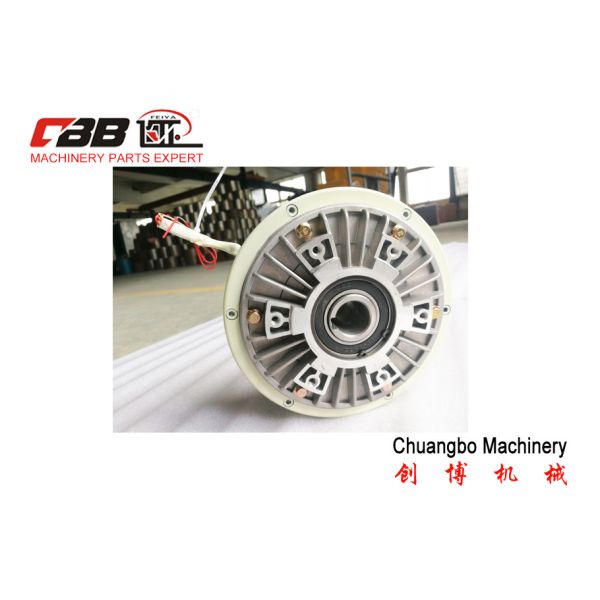

Hollow 10kg 100NM FZ100K Magnetic Powder Brake Images
|
